Support and stabilization tools are indispensable for drilling operations, especially for deep and ultra deep wells. It helps to reduce well deviation, prevent harmful grooves on the well wall, reduce the time required for drilling, and extend the service life of drilling bits. Sunrise Petro offers a wide range of Drilling stabilizers, made in accordance with the requirements of API and Chinese national specification.
The drilling stabilizer, also known as centralizer, is a tool to keep the drill string running smoothly when it rotates at high speed in the borehole, so that the drill bit axis is as close to the borehole centerline as possible Its main function is to reduce the axial and radial vibration of the elastic system of the drill string in the borehole, reduce the eccentric wear of the drill rod and the drill bit, prevent well deviation, conduct manual directional drilling, and ensure the quality of drilling coring.
The stabilizer is an important tool used to prevent from borehole deviation in petroleum, natural gas, geological exploration and drilling engineering. When strong rigid drill collar is equipped with and large bit weight is given the implementation of applicable stabilizer which reduces a rate of deviation and of azimuth can improve the well wall quality and reduces drilling costs.
The following table shows the dimensions and other parameters of the basic model of Sunrise Petro drill pipe centralizer.
| No. | Working OD (mm) | ID (mm) | Total length (mm) | Blade working length (mm) | Thread type | Design |
| 1 | 292,1 | 90 | 1800 | 900 | 6 5/8 REG | 3 straight blades |
| 2 | 292,1 | 90 | 1800 | 900 | 6 5/8 REG | 3 spiral blades |
| 3 | 212,7 | 71 | 1600 | 800 | 5 1/2 FN | 3 straight blades |
| 4 | 212,7 | 71 | 1600 | 800 | 5 1/2 FN | 3 spiral blades |
| 5 | 141,2 | 44 | 1200 | 400 | 3 1/2 REG | 3 straight blades |
| 6 | 141,2 | 44 | 1200 | 400 | 3 1/2 REG | 3 spiral blades |

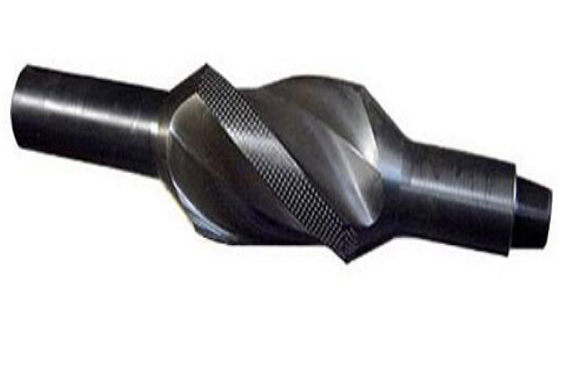

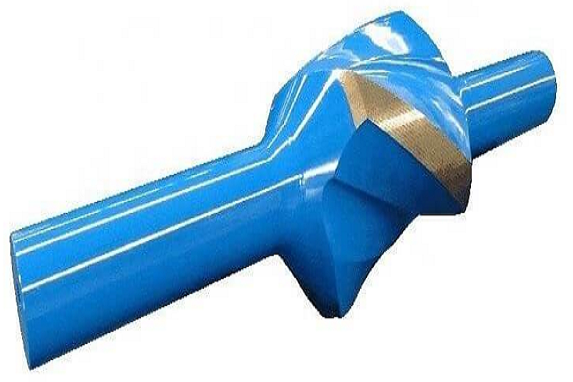

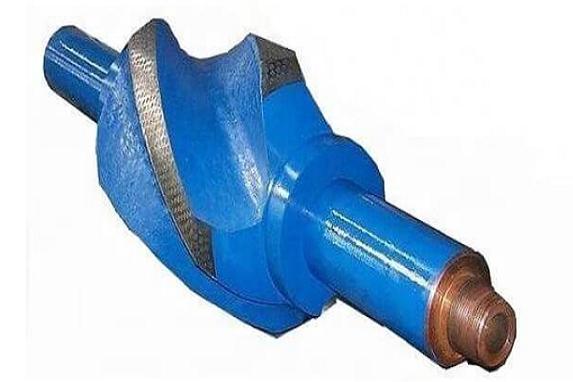

Types
--Integral spiral blade stabilizer
--Integral straight rib stabilizer WZ.
--Roller type stabilizer WG.
--Replaceable sleeve spiral stabilizer WH.
Sunrise Petro manufactures a variety of drilling pipes for oilfield including the common drilling pipe, Kelly bar, drill collar, anti-corrosion and anti-abrasion drill pipe according to API 5DP and API 7-1.
These drilling pipes have diverse types to fit different environments and applications.
The company has an R & D center with a team composed of domestic authoritative professors and senior engineers to provide users with high-performance and practical products.
