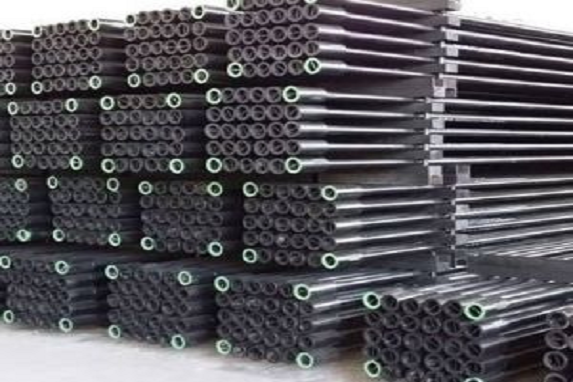

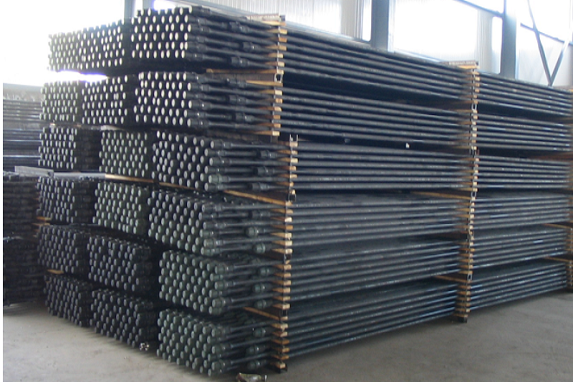

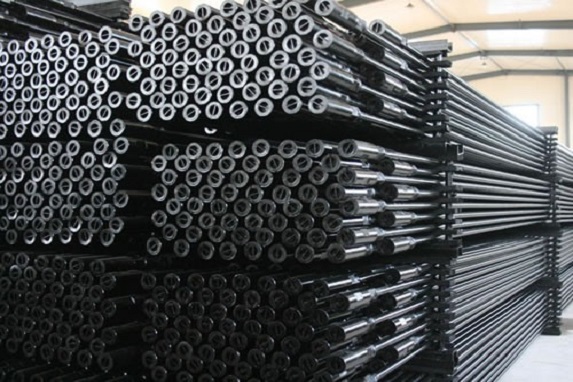

Sunrise Petro can supply common sucker rods and pony rods which comply with API 11B standard. These sucker rods also have various types to fit different environments and applications. They are manufactured through many processes including the testing, straightening and forging. Sucker rods of Sunrise Petro are made of high quality carbon steel and alloy steel due to customer request.
The polished rod is a special sucker rod for connecting the sucker rod and the beam hanger. Because it is located at the upper part of the sucker rod and bears the largest force, the diameter of the polished rod is larger than that of the sucker rod, the steel grade is higher, and the surface is smoother. The polished rod has mainly two types: regular grade D polished rod and end upsetting polished rod.
The regular grade D polished rods are connected by polished rod coupling.
| Regular Polished Rod Specification | |||
| Size | 1-1/8" | 1-1/4" | 1-1/2" |
| Rod body diameter | 1-1/8" | 1-1/4" | 1-1/2" |
| Thread nominal diameter | 15/16" | 1-1/16" | 1-3/16" |
| With of sucker rod size | 5/8" | 3/4" | 7/8" |
| Standard length | 25', 26', 30' or customized. | ||
The one-end upsetting polished rods are connected to the sucker rod directly for usage.
| One End Upsetting Polished Rod Specification | |||
| Rod body diameter | 1" | 1-1/8" | 1-1/4" |
| EUE thread nominal diameter | 1-3/16" | 1-3/8" | 1-9/16" |
| NUE thread nominal diameter | 15/16" | 1-1/16" | 1-3/16" |
| With of sucker rod | 1-3/16" | 1-3/8" | 1-9/16" |
| Standard length | 25', 26', 30' or customized. | ||
Specification
Material: SS, alloy steel.
Type: regular polished rod, end upsetting polished rod.
Rod diameter: 1", 1-1/8", 1-1/4", 1-1/2".
Length: 25', 26', 30' or customized.
Grade
Polished rods also have C,D,K and KD strength grades as sucker rods.
Features
High tensile strength.
Can be used with the sucker rod and hollow sucker rod.
Corrosion resistant.
Smooth surface
Application
Polished rod is mainly used for connecting between the pumping unit and rod string in the oil well.
The regular grade D polished rod is not used for high corrosion environments.
The end upsetting polished rod can be used combined with sucker rod for usage.
Sunrise Petro can supply API Sucker rod including the common sucker rod& pony rod, polished rod and sinker bar. Based on API Spec 11B and SY / T 5029 specifications, Sunrise Petro also developed a series of special sucker rods suitable for different well conditions, especially under high corrosion and high load conditions for oil well.
Our technical staff is ready to provide assistance in selection and design.With inventory and field sales support in strategic location, we are ready to respond in a timely professional manner 24 hours a day.
